Hardware Kits – Deluxe

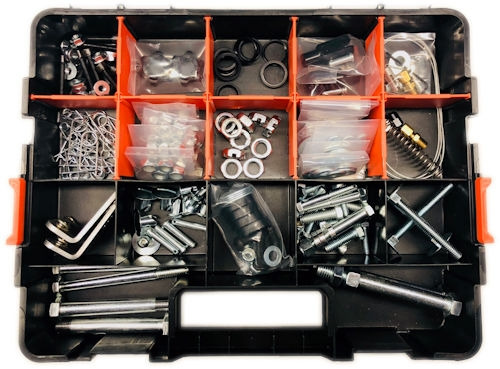

PC-HKD The Deluxe Hardware Kit includes: 1- Seat mount kit 1- Motor mount bolt kit 12- ¼-28 Easy start tapered wheel studs 4- ¼-28 Hardened steel ½ hex wheel nuts 6- ¼-28 Smooth wheel nuts 2- of each wheel spacers 1/8” & ¼” (8 pcs. Total) 1- Aluminum spindle nut set 1- Aluminum throttle clevis 3- Aluminum spacers for pitman arm bolt 1- Throttle cable 1- Compression fitting 1- 3/8 Hex cable pull adapter 1- Throttle spring 1- ¼” dia. Throttle rod locking collar 1- ¼-28 thin steel jam nut for throttle assembly 1- Throttle linkage kit 20- Small safety clips 5- Large safety clips 2- Aluminum body brackets with springs installed 2- Axle snap rings 2- King pin bolts (1/2 x 3.75 Long) 2- Rear bumper bolts w/ nuts 1- ¼-28 x ¾ BHCS for axle bearing 1- 5/16-24 x ½ Set screw for PM-15ULS 3- 10-32 x 5/8 BHCS 3- 10-32 Nyloc nuts 6- ¼-20 x 1 HHB 6- ¼-20 Nyloc nuts 6- 5/16-18 Nyloc nuts 10- 5/6-18 Nuts 4- 3/8-16 thin jam nuts 4- ½-20 Right hand thin jam nuts 6- ½-20 Thin slotted jam nuts 12- 7/8” OD x ½” ID x 1/16” thick spindle washers 2- 7/8” OD x ½” ID x 1/4” thick spindle washers 6- 7/8” OD x ½” ID x 1/32” thick spindle washers 3- #10 Flat washers 3- #10 Fender washers 10- #12 Flat washers 15- 5/16 Flat washers 4- 5/16 Fender washers 6- 3/8 Flat washers 4- Nerf bar pins 1/4” dia. 3- Seat weight mounting elevator bolts 6- 5/16 Dzus buttons 4- 7/17 Dzus buttons (Large 1 inch head) 2- 3/8-16 x 1 head drilled HHB 2- 3/8-16 x 1 ¼ HHB 2- 3/8-16 x 1 ¼ drilled HHB 2- 3/8-16 x 4 ½ drilled HHB 1- 3/8-16 x 2 ½ drilled HHB 2- 5/16-18 x 2 drilled HHB 1- ¼-20 x 1 ¾ drilled SCHS 1- Plastic case
